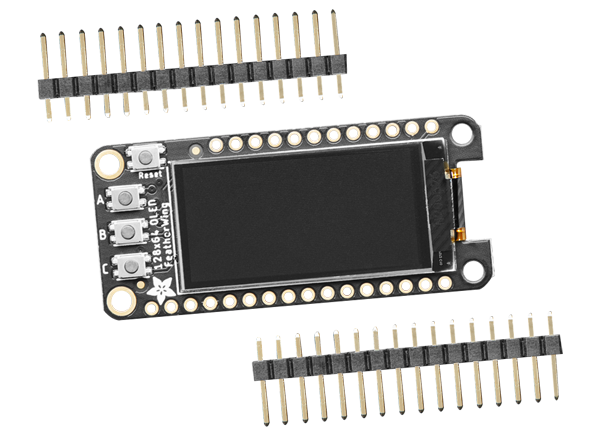

Adafruit FeatherWing 128x64 OLED Add-on for Feather
Adafruit FeatherWing 128x64 OLED Add-on for Feather is a small 1.3-inch diagonal monochrome display with three user buttons that can be used on any Feather mainboard. This OLED uses only I2C to easily connect with two pins (plus power and ground) and features an auto-reset circuit and a reset button on the top. This display screen is made up of 128x64 individual white OLED pixels and no backlight is required as the display makes its own light. The SparkFun Qwiic-compatible STEMMA QT connector is included for the I2C bus that provides plug and play for STEMMA QT, Qwiic, and Grove I2C devices.Features
- 128x64 OLED
- 1.3-inch diagonal monochrome display
- 22.9mm x 50.9mm PCB dimension
- ~25.8mm display area
- SparkFun Qwiic-compatible STEMMA QT connector for the I2C bus
Videos
Published: 2020-11-05
| Updated: 2020-12-14
