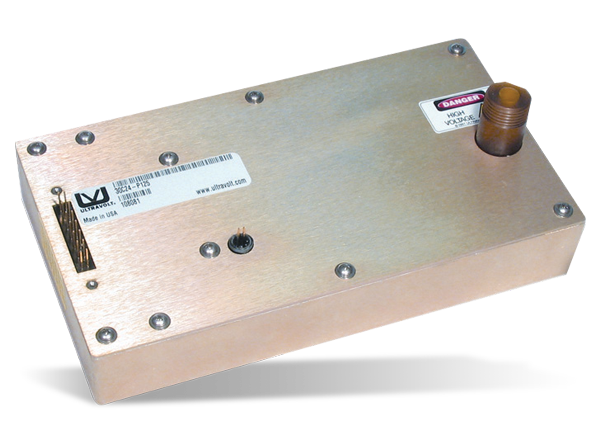

Advanced Energy High-Power C Series DC-DC Converters address the high power density needs of applications greater than 30W, providing up to 60/125/250W output power. This high power density is especially suited to high-energy systems with large capacitances, fast repetition rates, or high continuous-DC-power requirements. These capacitor-charging modules provide high efficiency, output short-circuit protection, and very fast rise with very low overshoot. The low-profile DC-DC converters feature output current and voltage monitors in a fixed-frequency, low-stored-energy design. The High-Power C Series includes models with optional -I5 enhanced interfaces, which feature fixed ranges of calibrated control voltages and buffered monitored signals.
Models from 0 to 125V through 0 to 6kV
60, 125, or 250W of output power
Maximum Iout capability down to 0V
Maximum Iout during charge/rise time
Output short-circuit protection
Very fast rise with very low overshoot
High power to voltage density
Very low profile
Output current & voltage monitors
>200,000 hour MTBF @65°C
Fixed-frequency, low-stored-energy design
UL/cUL Recognized Component; CE Mark (LVD & RoHS)
