Advanced Thermal Solutions tvLYT™ Liquid Crystal Thermographic Analysis Tool

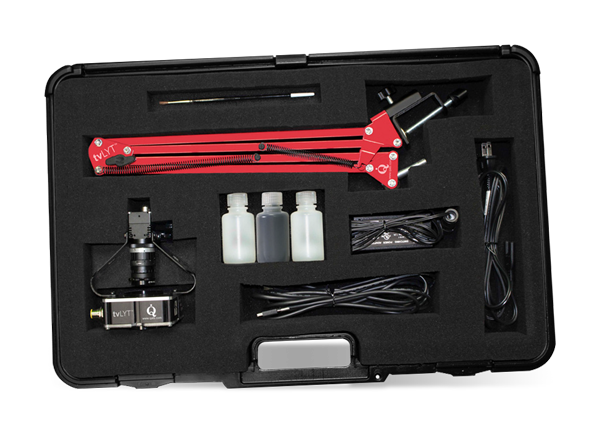

Advanced Thermal Solutions tvLYT™ Liquid Crystal Thermographic Analysis Tool is a high-resolution system for cost-effective temperature measurement of electronic circuit boards, microcircuits, hybrid components, and integrated circuits. A scissor-arm stand base for easy attachment supports the camera lens assembly. System components include a high-performance, solid-state color camera with acroscopic optics, a stable, flicker-free LED light source, and a USB connection.
Features
- Manual focus
- Software capabilities to 200mm by a factor of 16x
- thermVIEW™ Lite image processing software system
- RoHS compliant
- Lifetime technical support
- USB connection
- Field of view
- 26mm x 26mm at 15mm distance
- 180mm x 180mm at 48mm distance
Specifications
- 16x digital zoom magnification
- 115V power (required for LED light)
- 81.3cm x 12.7cm x 15.2cm (32" x 5" x 6") when fully extended
- PC requirements
- 128M memory
- 1GB storage
Applications
- IC thermal design and verification
- Accurate temperature measurement on hot spots on mini and micro-circuits, components, modules, and PCBs
- Locate hot spots and defects
- Quick and easy temperature gradient analysis of devices
- Comparative failure analysis
