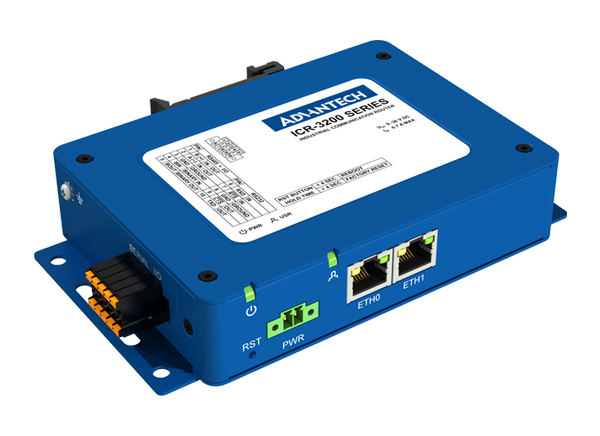

Advantech ICR-3201 LAN Gateways

Advantech ICR-3201 LAN Gateways are designed to connect IP or serial devices to a LAN network via the WAN interface. These gateways provide diagnostic functions such as automatic monitoring of the wireless and wired connections, automatic restart, and a hardware watchdog that monitors the router status. The ICR-3201 gateways feature built-in digital I/O connectivity, backup real-time clock, and sleep mode support and ICR-3201W also provides built-in Wi-Fi® and BLUETOOTH® v5.1 (class 1). These gateways operate at 9VDC to 36VDC power supply range and -40°C to 75°C temperature range. The ICR-3201 gateways feature 100Mbps upload speed, 100Mbps download speed, and provide ample bandwidth for high data demand applications such as CCTV or public Wi-Fi hotspots. These LAN gateways are used in industrial M2M and IoT applications such as kiosks, industrial PCs, HMIs, traffic controllers, meters, and UPS systems.


  • Backup real-time clock
  • Sleep mode and power ignition
  • Robust metal cover with DIN and wall mount options
  • LAN VPN gateway for industrial IoT applications
  • Cortex A8 CPU at 1GHz
  • 512MB RAM
  • 4GB EMMC FLASH memory in pSLC mode
  • 9VDC to 36VDC power supply range


  • Kiosks
  • Industrial PCs
  • Meters
  • Human Machine Interfaces (HMIs)
  • Traffic controllers
  • Uninterruptible Power supply (UPS)

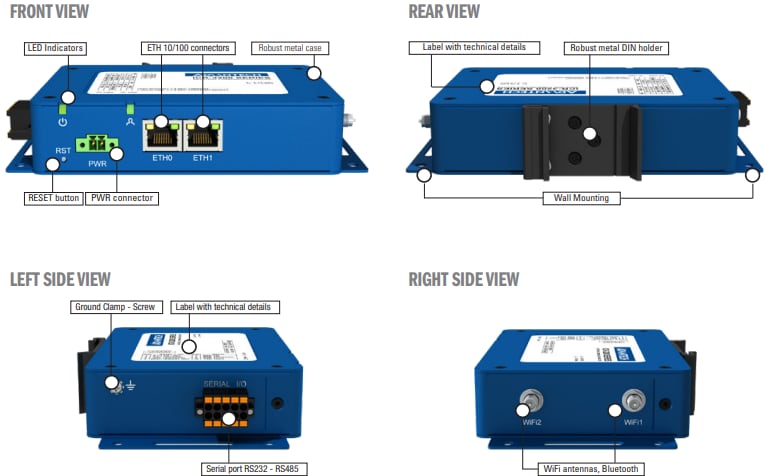

Dimensions Diagram

Mechanical Drawing - Advantech ICR-3201 LAN Gateways


Advantech ICR-3201 LAN Gateways
Published: 2020-07-29 | Updated: 2023-03-06
