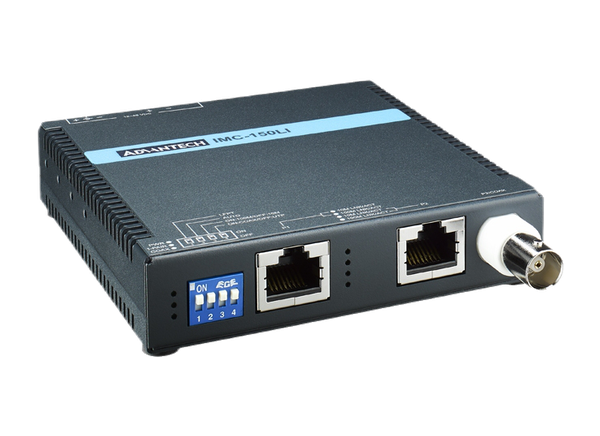

Advantech IMC-150L Ethernet Extender

Advantech IMC-150L Ethernet Extender provides point-to-point Ethernet extension over a 100m limit for Ethernet transmission distances. This extender supports 10/100Mbps Ethernet over twisted pair cable (CAT-5, UTP) and coaxial cable (transmit data up to 1km via coaxial cable). The IMC-150L Ethernet extender offers a user-configurable Dual In-line Package (DIP) switch selection of Link Fault Pass-Through (LFPT) features and force speed setting. This IMS-150L extender is flexible and freely extends existing Ethernet networks to reach remote IP devices.

The extender acts as a Power Sourcing Equipment (PSE) and a Powered Device (PD). Also, the power source from the PoE+ switch or power with 48VDC input reaches both local and remote sites. Typical applications include commercial buildings, harsh environments, airports, and virtually anywhere that requires Ethernet transmission over 100m.

Features

  • Extends Ethernet up to 1km at 10Mbps or 500m at 100Mbps over coaxial cable
  • Offers a user-configurable Dual In-line Package (DIP) switch selection
  • Features Link Fault Pass-Through (LFPT)
  • Flexible and freely extends existing Ethernet networks to reach remote IP devices
  • Acts as a PSE and a PD
  • Switch-selectable for configuring LAN rate and connection type
  • Dual design with PoE+ PD/PSE (IMC-150LPI)

Specifications

  • Railway Trackside EN 50121-4
  • IEEE 802.3, 802.3u, 802.3x standard
  • 10/100Base-T(X) LAN
  • Connectors:
    • 1 x 10//100Mbps RJ-45
    • 1 x 10/100Mbps Combo UTP/COAX
  • -40°C to  75°C operating temperature range
  • 2.401W power consumption
  • 12V to 48V DC power input
  • 30W power output
  • 92.58mm × 21.08mm × 98.04mm dimensions
  • IP30 metal shell with solid mounting kits enclosure

Applications

  • Commercial buildings
  • Harsh environments
  • Airports
  • Virtually anywhere that requires Ethernet transmission over 100m
