Advantech USB-5800 3.0 I/O Modules

Advantech USB-5800 3.0 I/O Modules feature a built-in USB hub that supports daisy chain topology, level 3 ESD, and surge protection. These modules with USB 3.0 SuperSpeed can transfer data up to 5Gbit/s. The USB-5800 i/o modules provide advanced functions such as Auto Recovery®, Output-Locker®, and link reconnection. These modules consist of front LED indicators, ID switch, and terminal blocks that are used to read module status and connect wires easily. The USB-5800 i/o modules operate at 0°C to 60°C temperature range. These modules function at 10VDC to 30VDC supply voltage range.

USB-5801 USB 3.0 I/O Module

The USB-5801 module features 4 simultaneously sampled analog inputs up to 192 kS/s. This module includes a built-in anti-aliasing filter and 2 tachometer inputs for the period or frequency measurement. The USB-5801 module consists of 4-ch isolated digital input and 4-ch isolated digital output, 24-bit resolution DACs, and 24-bit resolution ADCs.

USB-5817 USB 3.0 I/O Module

The USB-5817 module features 8 x 16-bit analog input channels with 2,500VDC isolation. This module includes a removable European-type connector, a wide common-mode voltage range, and support voltage and current measurement. The USB-5817 module offers 200kΩ Common-mode input impedance and 800kΩ differential input impedance. This module functions with 350mA power consumption at 5V bus power (typical).

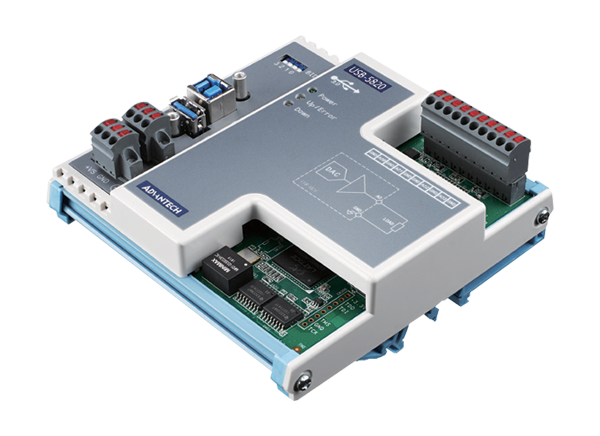

USB-5820 USB 3.0 I/O Module

The USB-5820 features 4 x 16-bit analog output channels and multiple voltages as well as current output ranges. This module includes a removable European-type connector. The USB-5820 module functions at 450mA power consumption at 5V bus power (typical). This module offers a 200kS/s update rate. The USB-5820 module operates on Windows XP/7/8/10.

Features

  • Daisy chain topology
  • Level 3 Electrostatic Discharge (ESD)
  • Surge protection
  • Auto recovery
  • Output locker
  • Link reconnection
  • USB-5801:
    • Built-in anti-aliasing filter
    • 2 tachometer inputs for the period or frequency measurement
    • 4-ch isolated digital input and 4-ch isolated digital output
    • 24-bit resolution DACs with -91dB total harmonic distortion plus noise (THD+N)
  • USB-5817:
    • Support voltage and current measurement
    • Wide common-mode voltage range
    • 8 x 16-bit analog input channels
  • USB-5820:
    • Multiple voltages and current output ranges
    • 4 x 16-bit analog output channels
  • USB-5817 and USB-5820:
    • Removable European-type connector
    • Supported operating systems:
      • Windows XP/7/8/10

Specifications

  • 0°C to 60°C operating temperature range
  • -40°C to 70°C storage temperature range
  • 10VDC to 30VDC supply voltage range
  • 2500VDC isolation protection
  • USB-5801:
    • 2mA IEPE excitation current
    • 192kS/s update rate of 2 analog outputs
    • 350mA load current per channel
    • 5KHz input frequency
  • USB-5817:
    • 200kS/s sampling rate
    • 200kΩ common-mode input impedance
    • 800kΩ differential input impedance
    • 350mA power consumption at 5V bus power (typical)
  • USB-5820:
    • 200kS/s update rate
    • 450mA power consumption at 5V bus power (typical)
