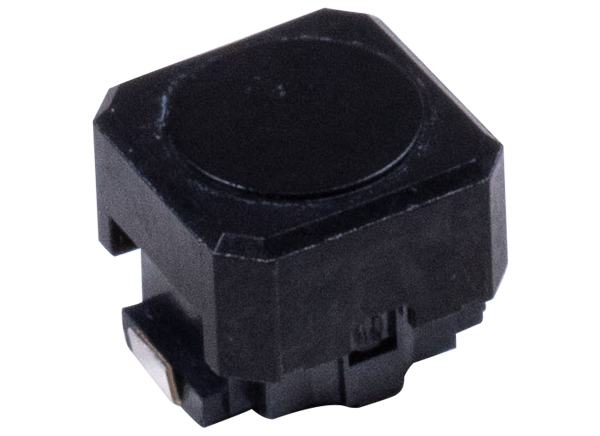

Alps Alpine SKPS Surface-Mount TACT Switches™
Alps Alpine SKPS Surface-Mount TACT Switches™ offer a high operating force and long life, making them ideal for automotive applications. The switches feature a compact design of 5.9mm x 6.0mm x 5.0mm, a high operating force of 3.0N or 3.6N, and a short travel of 1.05mm. Alps Alpine SKPS Surface-Mount TACT Switches withstand harsh conditions, such as extreme temperatures and vibrations while meeting the demand for quiet operation. Applications include vehicle audio/visual and navigation systems, steering wheels, and air conditioning controls.
Features
- 3.0N, 3.3N 3.6N operating force ideal for automotive equipment requirements
- 300,000 cycles operating life
- Middle stroke (1.05mm)
- Top push direction
- 100 mΩ initial contact resistance
- 1VDC minimum voltage
- 10μA minimum current
- 16VDC maximum voltage
- 50mA maximum current
Applications
- Vehicle audio/visual and navigation systems
- Steering wheels and other automotive equipment
- Industrial equipment and measuring instruments
