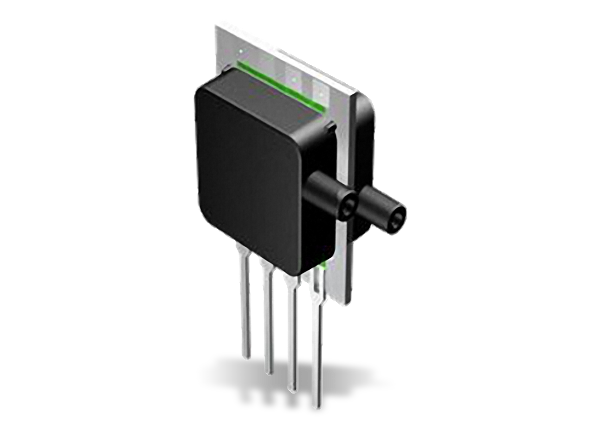

Amphenol All Sensors DLVR Digital Pressure Sensors offer a 0.5inH2O to 60inH2O pressure range in a miniature package with SIP and DIP lead configurations. These low-voltage miniature sensors utilize proprietary CoBeam2™ technology, which reduces package stress susceptibility for improved overall long-term stability. The technology also improves position sensitivity compared to single-die devices. Amphenol All Sensors DLVR Digital Pressure Sensors offer 3.3V or 5V supply voltage options for ease of integration into a wide range of process control and measurement systems. Typical applications include medical, environmental, industrial, portable, and more.
0.5" to 60" H2O pressure range
3.3V or 5V supply voltage option
I2C or SPI interface option
>1.0% accuracy over temperature (typical)
Miniature package with SIP and DIP lead configurations
PC board-mountable package
Multiple port and lead configurations available
Amphenol All Sensors DLV Low Voltage Digital Pressure Sensors
Offers excellent performance over middle-pressure ranges of 5PSI to 60PSI, based on the DLVR series.
