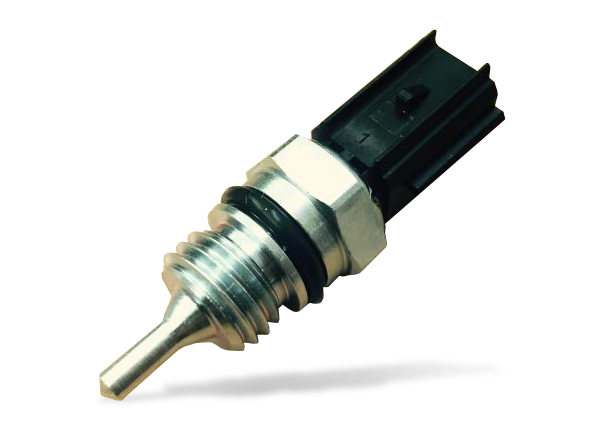

Amphenol Advanced Sensors IP67 Coolant Temperature Sensor (CTS)

Amphenol Advanced Sensors IP67 Coolant Temperature Sensors (CTS) monitors the temperature of the coolant that is being pumped around a battery to cool the battery module of EV/PHEVs. The sensor offers a BMS system if the battery module starts to overheat. The CTS system relays an over-temperature battery temperature to the BMS system. This enables the vehicle to be stopped and the charging switched off before the heat causes any permanent damage to the battery.

Features

Integral connector with compact size
Existing field-proven design

Alternate RvT curves and terminal plating is available
Different geometries to meet package requirements

Applications

Battery coolant temperature
Refrigerant temperature

Specifications

Temperature ranges
- -40°C to +100°C operating
- -40°C to +125°C storage
2828Ω ±1.3% resistance at +110°C
5-second response time from +25°C to +85°C in water

Temperature accuracy of ±0.3°C at +25°C
3975K ±0.75% Beta (25/85)°C
PBT-GF15 connector with 14mm hex machined 12L14 steel housing, zinc with trivalent chromium
USCAR 064 sealed (IP67) connector
USCAR 3140x-2110 mating connector
