Amphenol LTW 8A to 30A Power Connectors

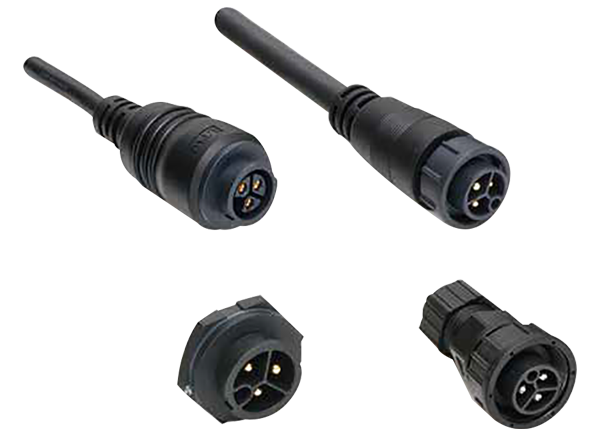

Amphenol LTW Power Connectors offer up to 30A current rating and feature a robust, high-density design. The power connectors are available in receptacle, over-molded with cable, and field-installable designs with a waterproof rating of IP66 to IP68. Amphenol LTW Power Connectors have a temperature range of -40°C to +105°C.

Features

  • Current rating / Data
    • 8A
    • 12A
    • 16A
    • 20A
    • 25A
    • 30A
    • 10A+2A
    • 20A+2A
  • IP66 to 68 waterproof rating
  • Temperature range
    • -40°C to +105°C receptacle
    • -20°C to +80°C over-molded with cable
    • -40°C to +105°C field-installable
  • ≤5mΩ contact resistance
  • ≥100mΩ at 500VDC insulation resistance
  • 500 cycles durability
