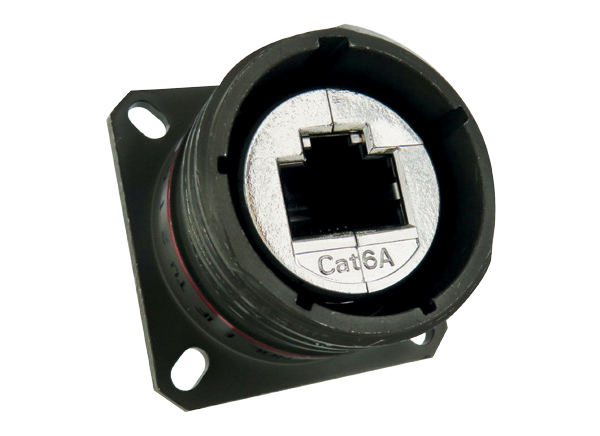

Amphenol Socapex RJFTV Cat6A Ethernet Connectors

Amphenol Socapex RJFTV Cat6A Ethernet Connectors offer a 10Gb/s Ethernet connection system for a harsh environment. These connectors provide Ethernet class Ea/Cat6A connection for 10 BaseT, 100 BaseTx, 1000 BaseT or 10G BaseT up to 500MHz networks in harsh environments. The RJFTV connectors feature a patented RJStop system that uses RJ45 cordset in a metallic plug and it protects from shocks, dust, and fluids. These connectors require no cabling operation in the field and improve the EMI protection. Typical applications include radars, shelters, and battlefield communication.


  • Tri-start thread coupling mechanism
  • Shell size 19
  • Data transmission
    • 10 BaseT, 100 BaseTX, 1000 BaseT, and 10G BaseT up to 500 MHz networks
    • Cat6A connector according to TIA568C.2 and ISO/IEC11801 standard
  • No cabling operation in the field, and no tools required
  • Mechanical coding/polarization
  • Improved EMI protection
  • Compatible with standard RJFTV plug
  • Environmental protection
    • IP68 mated seal against fluids and dust
    • IP68 unmated compounded versions


  • 500 minimum mating cycles
  • 6mm to 12mm cable diameter compatibility
  • 10Hz to 500Hz vibrations
  • >1μs no discontinuity for 3 axes
  • -40°C to +85°C temperature range
  • Panel thickness
    • 1.6mm min and 3.2mm max for jam nut receptacle


  • Data acquisition and transmission in harsh environments
  • Radars
  • Shelters
  • Battlefield communication
