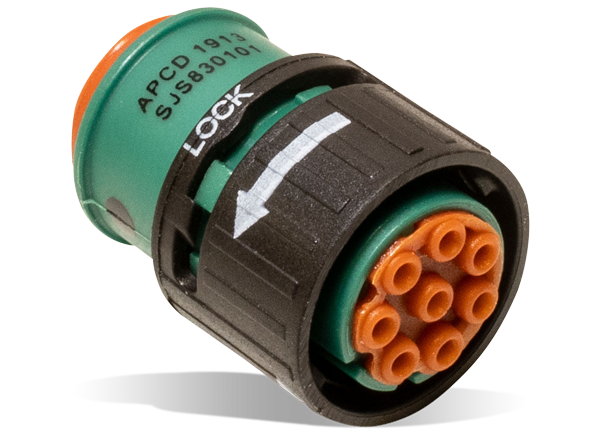

Amphenol Pcd Luminus Lighting Connectors

Amphenol Pcd Luminus Lighting Connectors are compact, configurable, and feature a secure coupling mechanism and tough polyamide housing. Based on Amphenol Air LB's military-grade connectors, Luminus connectors meet MIL-T-81714 specifications. The series combines reliability, ease of use, and environmental standards into a lightweight package that meets demanding lighting requirements. These environmentally sealed connectors offer a variety of flange styles, a small footprint, and aircraft-grade cable-mount accessories that allow for fast, efficient assembly, while standard AS39029, (formerly MIL-DTL-39029) contacts ensure reliable performance. These lighting connectors are designed to withstand high vibration and harsh environments, making them ideally suited for interior and exterior lighting in commercial aircraft, railway, and military applications.

Features

Ideal for demanding lighting applications
Meets MIL-T-81714 specifications
Environmentally sealed
High shock and vibration resistance for high-stress applications
Compact, configurable design with a small footprint
Offers reliability
Allows for fast, efficient assembly

Accepts standard AS39029 contacts (MIL-DTL-39029)
Rugged polyamide housings
Stamped and formed contacts for applications where Mil-Spec contacts are not necessary
Multiple keying positions for proper connectivity
Multiple configurations and accessories for flexibility
Polarization feature enables simple, blind mating

Specifications

Current ratings
- Size 16: 13A
- Size 20: 7.5A
- Size 22: 5A
Accepts standard MIL-DTL-39029/56-57-58 contacts

5000 MΩ min. at 500V_DC insulation resistance
Dielectric withstanding voltage
- 1000V_RMS, 60Hz at sea level
- 300V_RMS, 60Hz at 50,000 ft.
-65ºC to 125ºC temperature range
