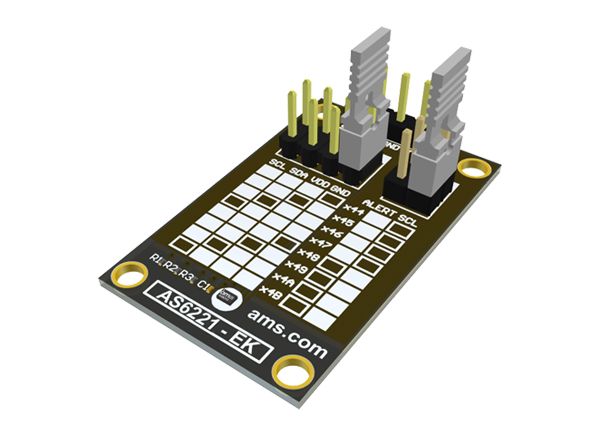

ams OSRAM AS6221-EK Evaluation Kit
ams OSRAM AS6221-EK Evaluation Kit is a simple PCB to enable a straightforward evaluation of the ams OSRAM AS6221 Digital Temperature Sensors. AS6221 Digital Temperature Sensors consist of a Si-bandgap temperature sensor, an ADC, and a digital signal processor. The AS6221 Digital Temperature Sensors communicate via a 2-wire digital bus with other devices.
The ams OSRAM AS6221-EK Evaluation Kit features the AS6221 digital temperature sensor, a decoupling capacitor, and pull-up resistors. The included jumpers are an easy way of setting the eight I²C addresses of the sensor. A 5x1 pin header with a 2.54mm pitch offers all necessary interfaces to connect the adapter board to a user's application processor.
Associated Products
ams OSRAM AS6221 & AS6221T Digital Temperature Sensors
Consists of a Si bandgap temperature sensor, an ADC and a digital signal processor.
Associated Demo Kit
ams OSRAM AS6221-DK Demo Kit
An easy-to-use exploration of the AS6221 Digital Temperature Sensors.
Layout
Published: 2020-12-11
| Updated: 2022-03-11
