ams OSRAM AS7221 Smart Lighting Integration Kit (SLIK) is a complete color tuning luminaire reference design solution, built around the AS7221 network-enabled smart lighting manager. The kit applies to the full AS72x smart lighting manager, including the AS7221, AS7220, AS7211, and AS7210. The integration kit is designed to move developers rapidly from demo to proof-of-concept integration into a prototype luminaire design. The kit consists of two interconnected modules the AS7221 sensor, networking and power module with integrated Bluetooth Smart (BLE), and the LED module with two strings of white LEDs for tuning (warm and cool). The SLIK includes the 2-section board, a diffuser, USB to serial interface cable, and power supply with US/European adapter. The included memory stick includes complete user documentation, GUI, and drivers.

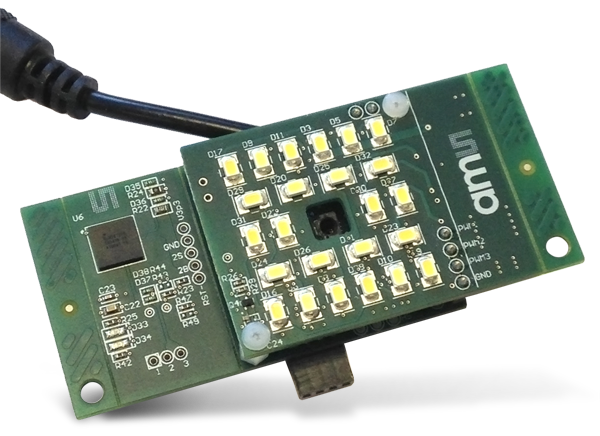

A fully assembled three-module AS7221 SLIK (3v2 assembly)
Optional AS4531 assembly for adding daylighting operation to the AS7221 SLIK
SLIK AC/DC 12V power supply (including US plug adapter, as required)
USB cable assembly for installation into the SLIK (for serial UART interface dashboard connectivity)
USB stick containing SLIK user guide, ams spectral sensor dashboard software and associated user guide, and the latest AS7221 device datasheet
