Analog Devices Inc. AD7610/AD7612 PulSAR® ADCs

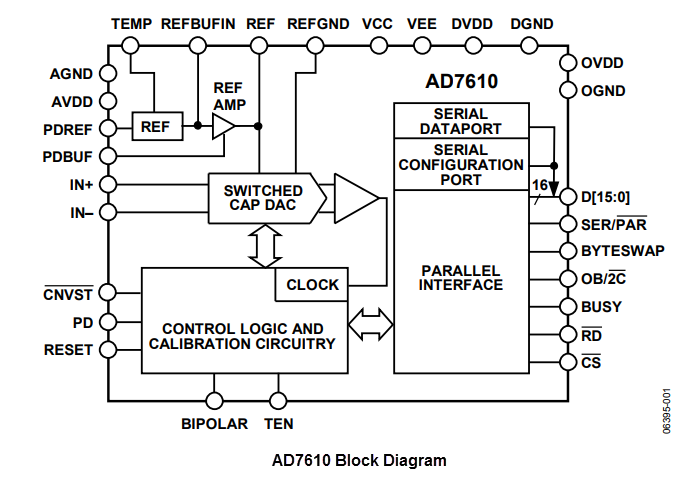

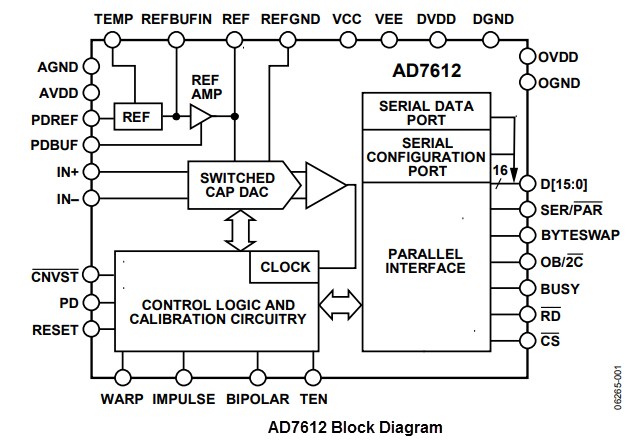

Analog Devices Inc. AD7610/AD7612 PulSAR^® ADCs are 16-bit unipolar/bipolar programmable input ADCs constructed using iCMOS^® high-voltage process. These ADCs include a high-speed 16-bit sampling ADC, an internal conversion clock, an internal reference and buffer, serial and parallel system interface ports, and error correction circuits. The AD7610/AD7612 ADCs feature four different analog input ranges including 0V to 5V, 0V to 10V, ±5V, and ±10V. These ADCs provide designers with three different sampling modes. These modes include warp-mode for the fastest throughput, normal mode for the fastest asynchronous throughput, and impulse mode where power consumption is scaled linearly with throughput. Typical applications include process control, medical instruments, high-speed data acquisition, instruments, and spectrum analysis.

Features

Multiple pins/software programmable input ranges:
- 5V, 10V, ±5V, and ±10V
Pins or serial SPI^® compatible input ranges/mode selection
Throughput:
- 250kSPS (AD7610)
- 750kSPS (AD7612 in warp mode)
- 600kSPS (AD7612 in normal mode)
- 500kSPS (AD7612 in impulse mode)
16-bit resolution with no missing codes
INL:
- ±0.75LSB (typical)
- ±1.5LSB (maximum) (±23ppm of FSR)
SNR:
- 94dB @ 2kHz (AD7610)
- 92dB minimum (5V) @ 2kHz and 94dB typical (±10V) @ 2kHz (AD7612)
THD:
- -107dB typical (AD7612)

iCMOS process technology
5V internal reference with 3ppm/°C typical drift
On-chip temperature sensor
No pipeline delay (SAR architecture)
Parallel (16- or 8-bit bus) and serial 5V/3.3V interface
SPI-/QSPI™-/MICROWIRE™-/DSP-compatible
Power dissipation:
- 90mW @ 250kSPS (AD7610)
- 10mW @ 1kSPS (AD7610)
- 190mW @ 750kSPS (AD7612)
48-lead LQFP and LFCSP (7mm x 7mm) packages
