The zero-drift amplifier topology of the ADA4254 self calibrates DC errors and low-frequency 1/f noise, achieving excellent DC precision over the entire specified temperature range. This high level of precision maximizes dynamic range and greatly reduces calibration requirements in many applications.

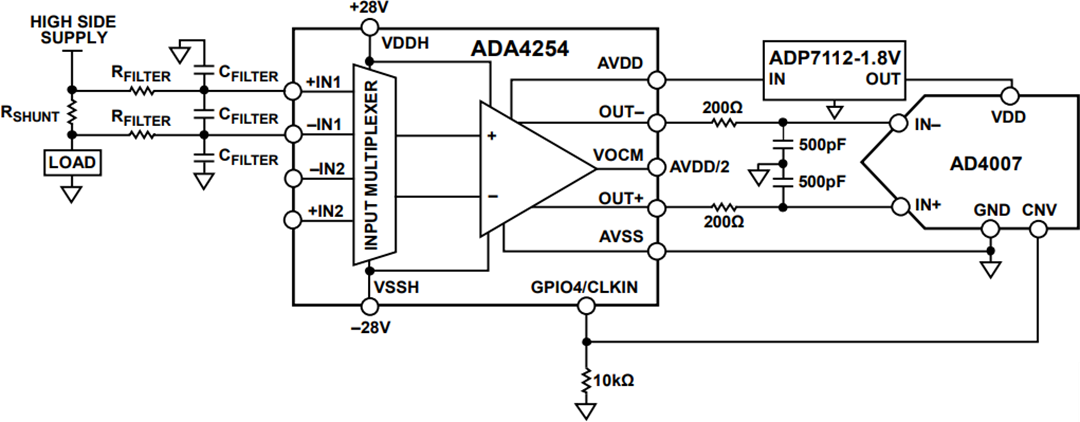

The input multiplexer provides ±60V protection to the high impedance inputs of the amplifier while providing the capability to switch between two input sources. In addition, integrated electromagnetic interference (EMI) filters block harsh RF noise from the sensitive inputs of the amplifier.
Various safety features on the ADA4254 detect both internal and external faults. The serial port interface (SPI) supports cyclical redundancy check (CRC) error detection to ensure robust communication. These safety features ease system safety integrity level (SIL) certification.

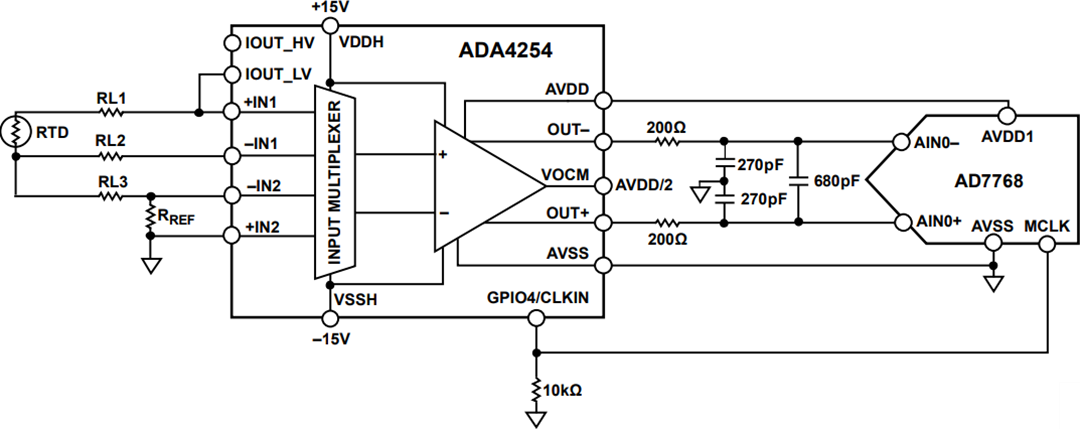

Seven general-purpose input/output (GPIO) pins, which can be configured to provide various special functions, are included in the ADA4254. An excitation current source output is available to bias sensors such as resistance temperature detectors (RTDs).

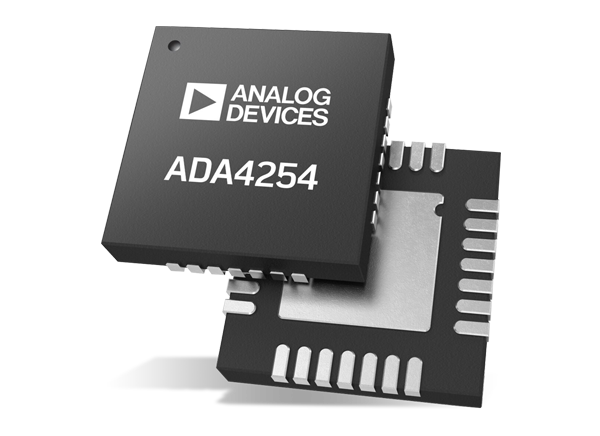

The ADA4254 is specified over a -40°C to +105°C temperature range and is offered in a compact 5mm x 5mm, 28-lead LFCSP, and a 24-lead TSSOP.
