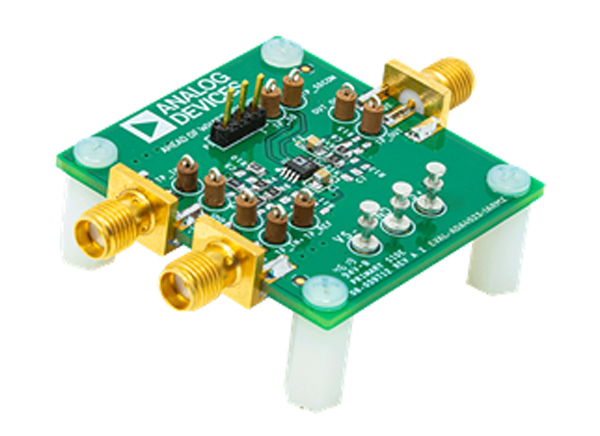

Analog Devices Inc. ADA4523-1 Evaluation Board
Analog Devices Inc. ADA4523-1 Evaluation Board is designed for the ADA4523-1 single-channel, 8-lead, micro small outline package (MSOP) operational amplifier. The ADA4523-1 is configured as a noninverting amplifier with a gain of 101. The ADA4523-1 has a typical gain-bandwidth product of 4MHz.
The EVAL-ADA4523-1ARMZ mainly consists of 0805 sized resistors and capacitors to ensure simple installation except for the bypass capacitors.
Features
- Full-featured evaluation board for the ADA4523-1
- Enables efficient prototyping
- User-defined circuit configuration
- Edge-mounted SMA connector provisions
- Shutdown function for low-power application
Required Equipment
- Dual output power supply
- Signal generator
- Oscilloscope
- 3 banana jack to grabber cables
- 2 SMA to BNC male cables
Related Products
Analog Devices Inc. ADA4523-1 Zero Drift Op Amp
Features precision DC performance over a wide supply range of 4.5V to 36V.
Front & Back View
PCB Layout
