Analog Devices Inc. Evaluation Boards for ADMV4530 Upconverters

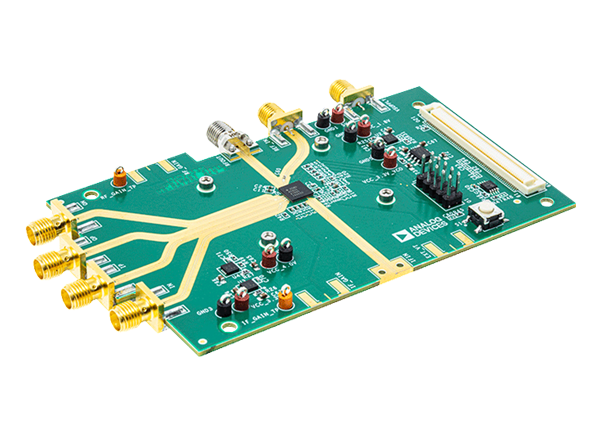

Analog Devices Inc. Evaluation Boards for ADMV4530 Upconverters allow for efficient evaluation of the ADMV4530. These boards use in-phase/quadrature (I/Q) mode and intermediate frequency (IF) mode. The boards incorporate the ADMV4530 Ka-band upconverter with low dropout (LDO) regulators and an interface to the EVAL-SDP-CS1Z (SDP-S) controller board. The onboard LDO regulators allow the ADMV4530 to be powered on by a single supply.
Features
- Fully featured evaluation board for the ADMV4530
- Onboard system demonstration platform (SDP-S) connector for SPI
- 5V operation through LDO
- ACE software interface for SPI control
Overview
Related Products
Analog Devices Inc. ADMV4530 Upconverter with Integrated PLL+VCO (27-31GHz)
Features integrated fractional-N PLL and VCO, eliminating the need for external frequency synthesis.
Analog Devices Inc. SDP-S Controller Board (EVAL-SDP-CS1Z)
Allows for configuration and capture of data on daughter boards from the PC via USB.
