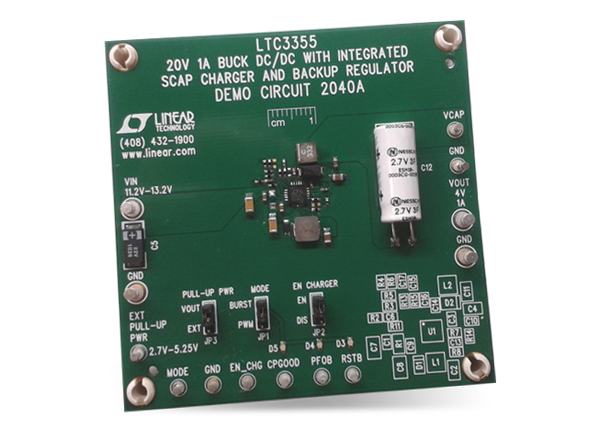

Analog Devices Inc. LTC3355 Demo Board DC2040A
Analog Devices Inc. LTC3355 Demo Board DC2040A is a 12V to 4V/1A regulator with an integrated super cap charger and backup boost regulator featuring the LTC3355EUF. The LTC3355 charges up a 3F supercapacitor from the output when the 12V input is available. When the 12V input fails, the backup boost regulator supplies the output until the energy in the supercapacitor is depleted.
Measurement Equipment Setup
Associated Product
Analog Devices Inc. LTC3355 Buck DC/DC with Integrated SCAP Chargers
Ideal chargers for complete input power interrupt DC/DC systems.
Published: 2019-05-22
| Updated: 2022-03-11
