Analog Devices Inc. EVAL-ADE9078EBZ Evaluation Board enables designers to evaluate the ADE9078 Polyphase Energy Metering AFEs in a context close to an actual 3-phase meter implementation. This fully-featured evaluation board can operate in a standalone mode or in conjunction with the EVAL-SDP-CB1Z system demonstration platform and the evaluation software. When operating with the Analog Devices EVAL-SDP-CB1Z and the evaluation software, designers have access to the registers and features of the ADE9078 using a PC interface. Through the PC, time and frequency domain analysis can be performed.
Full-featured evaluation board for the ADE9078
PC control in conjunction with the system demonstration platform (EVAL-SDP-CB1Z)
PC software for control and data analysis (time and frequency domain)

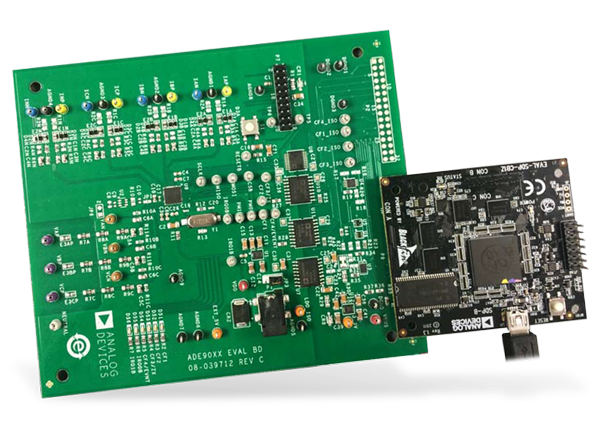

ADE9078 evaluation board
Analog Devices Inc. ADE9078 High-Performance AFEs
Highly accurate, polyphase energy metering AFEs enable a 3-phase metrology platform.
