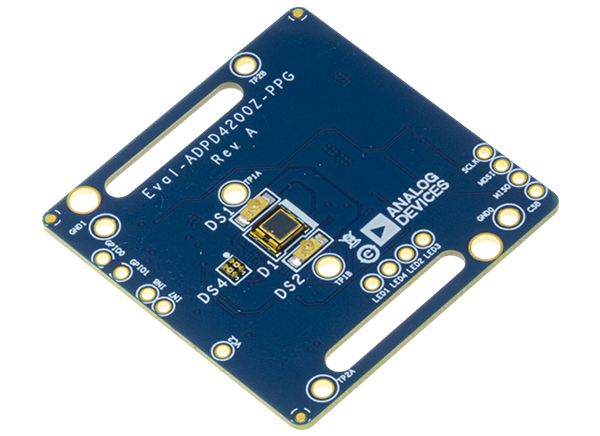

Analog Devices Inc. EVAL-ADPD4200Z Evaluation Board

Analog Devices Inc. EVAL-ADPD4200Z Evaluation Board supports the evaluation of the ADPD4200 Photometric Front End. This evaluation board has three separately driven green Light Emitting Diodes (LEDs), one Infrared (IR), and one red LED. The EVAL-ADPD4200Z Evaluation Board is populated with a single 7mm2 photodiode that has no optical filter coating but includes a pin-for-pin alternative device with an IR block filter. This evaluation board features a metal baffle to block optical crosstalk and works with the Wavetool Evaluation Software. The EVAL-ADPD4200Z Evaluation Board exhibits a simple, discrete optical design for vital signs monitoring applications, specifically wrist-based photoplethysmography (PPG).

Features

  • Board supports ADPD4200 population
  • ADPD4200 (SPI) is the default board population
  • All inputs and outputs are accessible to the user
  • 3 separately driven green LEDs are included
  • 1 red and 1 IR LED included
  • Metal baffle to block optical crosstalk
  • Works with the Wavetool Evaluation Software allowing:
    • Time domain graphing and logging
    • Frequency domain graphing
    • Statistical analysis
    • Data streaming to other applications

Software

Associated Product

ADPD4200 Multimodal Sensor Front End

Analog Devices Inc. ADPD4200 Multimodal Sensor Front End

Operates as a complete multimodal sensor front end, stimulating up to four Light Emitting Diodes.

Learn Moreabout Analog Devices Inc. ADPD4200 Multimodal Sensor Front End View Productsrelated to Analog Devices Inc. ADPD4200 Multimodal Sensor Front End

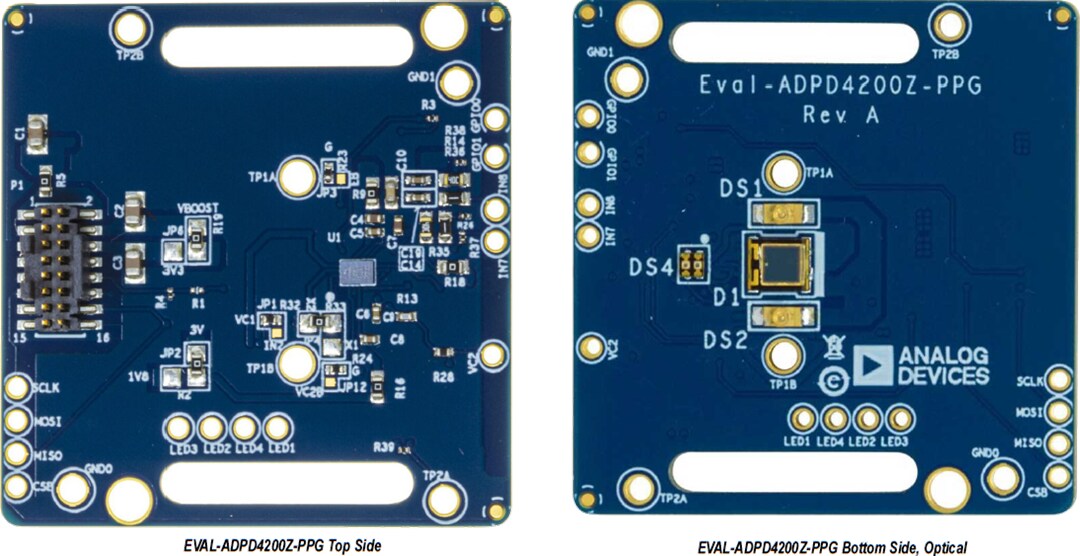

Board Layout

Analog Devices Inc. EVAL-ADPD4200Z Evaluation Board
