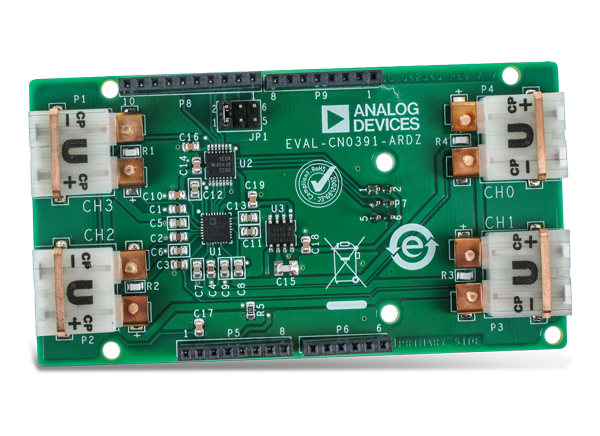

Analog Devices Inc. EVAL-CN0391-ARDZ Evaluation Board features the Arduino shield footprint and helps designers rapidly prototype the CN0391 Multi-channel Thermocouple Measurement System. The CN0391 Multi-channel Thermocouple Measurement System enables designers to input up to four thermocouples. The board supports eight thermocouple types including K, J, T, R, S, E, N, and B. Each individual thermocouple type has a cold-junction compensation along with complete embedded algorithms. CN0391 allows any combination of thermocouples.
Flexible 4-channel thermocouple system
Cold junction compensation
Arduino-compatible form factor
Required for Use
Analog Devices Inc. EVAL-ADICUP360 Development Board
Designed to be form-factor compatible with the Arduino UNO, Due as well as Pmod™ Interface.
