Analog Devices Inc. EVAL-HMC1096 Evaluation Board

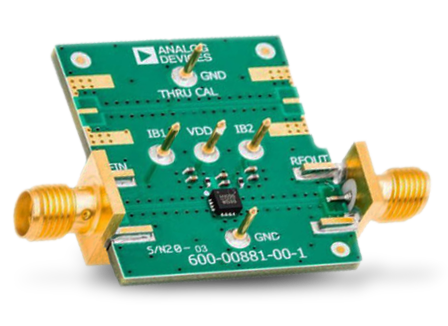

Analog Devices EVAL-HMC1096 Evaluation Board helps designers evaluate the features of the HMC1096 GaAs pHEMT MMIC x2 active frequency multiplier. The EVAL-HMC1096 Evaluation Board includes the HMC1096, PCB mount SMA RF connectors, DC pins, 100pF capacitors, 10000pF capacitors, a 2.70KΩ resistor, and a 3.30KΩ resistor.
