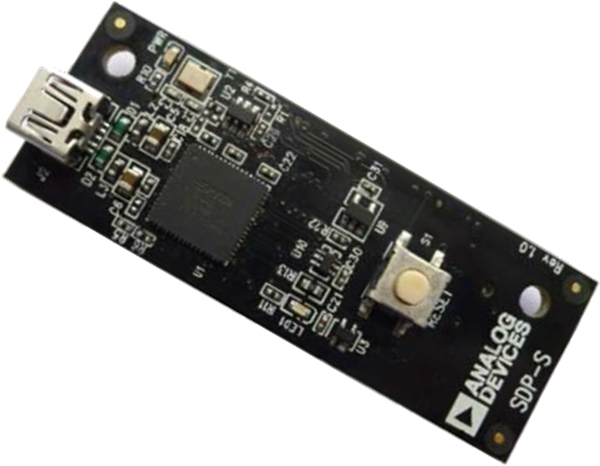

Analog Devices Inc. SDP-S Controller Board (EVAL-SDP-CS1Z)
Analog Devices SDP-S (System Demonstration Platform-Serial) Controller Board (EVAL-SDP-CS1Z) is part of the Analog Devices System Demonstration Platform (SDP). The SDP (System Demonstration Platform) consists of a series of controller boards, interposer boards, and daughter boards. The SDP Controller Boards provide a means of communicating with the system under evaluation from the PC. The SDP-S Controller Board can be used as part of the evaluation system for many Analog Devices components and reference circuits. The SDP-S Controller Board provides USB connectivity through a USB 2.0 high-speed connection to the computer, allowing designers to evaluate components on this platform from a PC application. The SDP-S is based on a USB-to-serial engine, which has SPI, I2C, and GPIO lines available, with a 120-pin small footprint connector.
Features
- USB-to-Serial engine
- Peripherals exposed
- SPI
- TWI/I2C
- GPIO
- USB 2.0 PC connectivity
- 120-pin small footprint connector
- Power and status LEDs
- PC software stack and base firmware provided
- Requirements
- Windows XP SP2, Windows Vista™ 32-bit and 64-bit, Windows 7 Business/Enterprise/Ultimate 32-bit and 64-bit, or Windows 10 32-bit and 64-bit editions
- Intel Pentium® processor (x86 compatible), 1GHz or faster
- 512MB RAM and 2GB available hard disk space
- NET 3.5 Framework
- Available USB 2.0 port
Videos
Related Development Tools
Analog Devices Inc. ADMV8526-EVALZ Evaluation Board
Facilitates the evaluation of the ADMV8526 digitally tunable band-pass filter (BPF).
Analog Devices Inc. EV-ADF4401A Evaluation Board
Demonstration platform for the ADF4401A System in Package (SiP) Translation Loop Module.
Analog Devices Inc. EVAL-AD5413SDZ Evaluation Board
Demonstration and development platform for the AD5413 14-Bit Voltage and Current Output DAC.
Analog Devices Inc. EV-ADF4371SD2Z/EV-ADF4372SD2Z Evaluation Boards
Evaluation platform for the ADF4371 Microwave Wideband Synthesizer with integrated VCO.
Analog Devices Inc. EV-ADF5355SD1Z Evaluation Board
Evaluates the performance of the ADF5355 frequency synthesizer with integrated VCO for PLLs.
Analog Devices Inc. Evaluation Boards for ADMV4530 Upconverters
Allow for efficient evaluation of the ADMV4530.
Analog Devices Inc. ADMV8818-EVALZ Evaluation Board
Configured to evaluate the ADMV8818 Digitally Tunable, High-Pass and Low-Pass Filter operation.
Analog Devices Inc. ADMV4540-EVALZ Evaluation Board
Demonstration and development platform for the ADMV4540 K-Band Quadrature Demodulator.
Analog Devices Inc. EV-ADF4368SD1Z Evaluation Board
Demonstrates the ADF4368 fractional frequency synthesizer with an integrated VCO for PLLs.
Mechanical Drawing

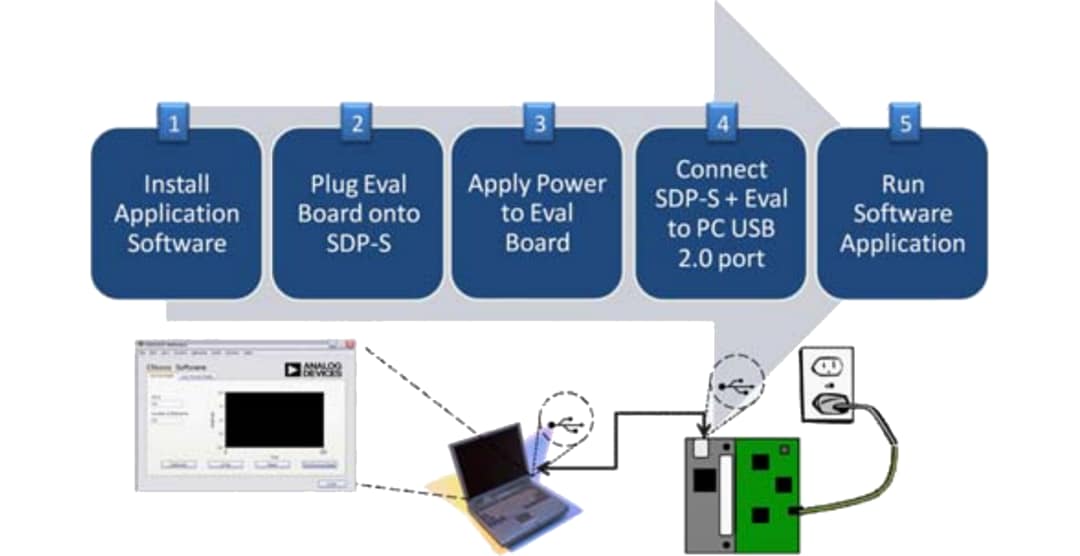

Setup
