Analog Devices EVAL-TPG-ZYNQ3 Xilinx Zynq®-7000 All Programmable SoC ZC706 Evaluation Kit is optimized for JESD204B and provides a data capture platform for many of the RadioVerse families of wideband transceiver evaluation boards. A single 12V power supply generates power for both the Zynq® and the RadioVerse evaluation boards. The data capture platform interfaces to the RadioVerse evaluation boards through a variety of interfacing standards including JESD207 and JESD204B. The JESD204B interface on the Zynq® evaluation system supports up to 12.5Gbps lane rates. A variety of interface options allows the evaluation kit to interface directly to a PC monitor, keyboard, and mouse as well as a PC running the Transceiver Evaluation or Prototyping Software Packages.
Upgraded with 3-speed grade XC
7Z045 FFG900 supporting up to 12.5Gbps JESD204B Lane Rates1GB (PS) DDR3 Component Memory1GB (PL) SODIM Memory
FMC LPC and HPC expansion ports
12V Adapter powers Zynq® Evaluation Kit
Provides Power for RadioVerse Transceiver evaluation boards via FMC connector

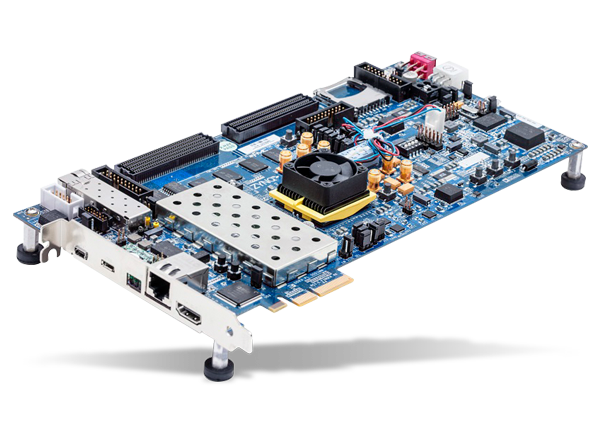

ZC706 evaluation board upgraded with XC7Z045 FFG900-SOC
