Analog Devices Inc. HMC586LC4B Evaluation Board
Analog Devices Inc. HMC586LC4B Evaluation Board evaluates the HMC586LC4B Wideband Voltage Controlled Oscillator. Analog VCOs are ideal for industrial and medical equipment, test and measurement equipment, and military radar. The board operates on a 4GHz to 8GHz frequency with a 5V operating supply voltage.
Kit Contents
- 108646 evaluation board
- HMC586LC4B VCO
- Johnson printed circuit board mount SMA radio frequency connector
- SRI PCB mount SMA connector
- DC header
- 1000pF capacitor, 0402 package
- Tantalum 4.7µF capacitor

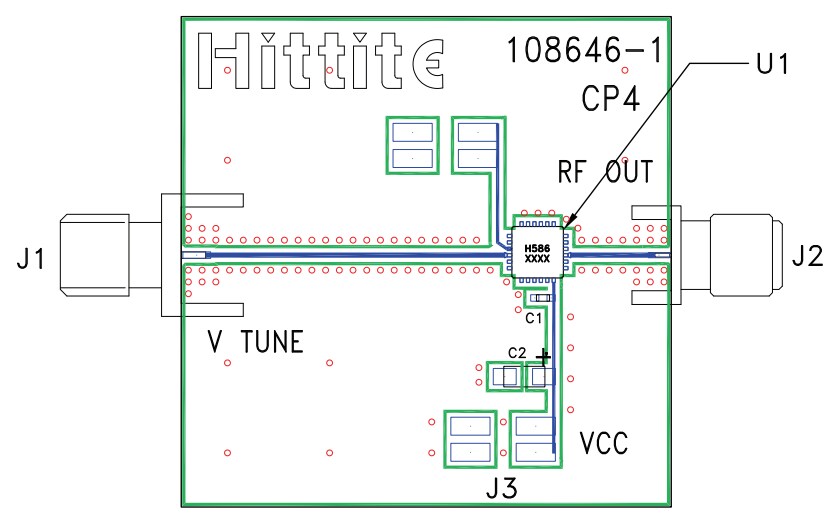

Evaluation PCB
Associated Product
Analog Devices Inc. HMC586LC4B Wideband Voltage Controlled Oscillators
Feature small size, low phase noise, low power consumption, and wide tuning ranges.
Published: 2019-06-26
| Updated: 2022-03-10
