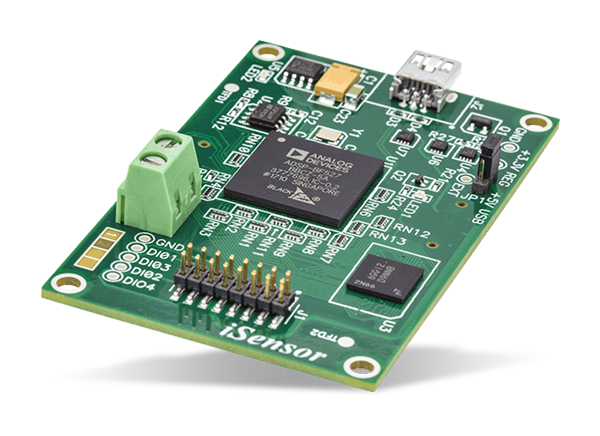

Analog Devices Inc. EVAL-ADIS2Z Evaluation Board for ADIS1647x IMU

Analog Devices EVAL-ADIS2Z Evaluation Boards provide basic demonstration, individual register access, and high-speed data capture for ADIS1647x IMUs. The 16-pin interface on the Analog Devices EVAL-ADIS2Z Evaluation Boards provides a connection path to the ADIS1647x Breakout Boards.

Features

  • 3.3V, 5V operating supply voltage
  • SPI interface

Kit Contents

  • Eval-ADIS2 Evaluation Board
  • 6ft. mini-USB cable
  • 18in. 16-pin IDC cable
  • 12in. 16-pin IDC cable
  • M2 x 0.4mm machine screw/hardware kit

Required Equipment

  • Microsoft Windows
  • ADI SDP USB Driver
  • NET Framework 3.5

System Diagram

Mechanical Drawing - Analog Devices Inc. EVAL-ADIS2Z Evaluation Board for ADIS1647x IMU

For Evaluation Of

ADIS1647x Precision Mini Industrial IMUs

Analog Devices Inc. ADIS1647x Precision Mini Industrial IMUs

Integrates six-degree-of-freedom sensing via multi-axis sensors in a small, surface-mount package.

Learn Moreabout Analog Devices Inc. ADIS1647x Precision Mini Industrial IMUs View Productsrelated to Analog Devices Inc. ADIS1647x Precision Mini Industrial IMUs

Associated Boards

ADIS1647x/PCBZ Breakout Boards

Analog Devices Inc. ADIS1647x/PCBZ Breakout Boards

Simplifies connecting the ADIS1647x IMUs to development platforms.

Learn Moreabout Analog Devices Inc. ADIS1647x/PCBZ Breakout Boards View Productsrelated to Analog Devices Inc. ADIS1647x/PCBZ Breakout Boards
ADIS16IMU1/PCBZ Breakout Board

Analog Devices Inc. ADIS16IMU1/PCBZ Breakout Board

Designed for the ADIS16xxx IMU and gyroscope devices with tapped M2 x 0.4mm machine screw holes.

Learn Moreabout Analog Devices Inc. ADIS16IMU1/PCBZ Breakout Board View Productsrelated to Analog Devices Inc. ADIS16IMU1/PCBZ Breakout Board
Published: 2018-11-28 | Updated: 2023-06-09
