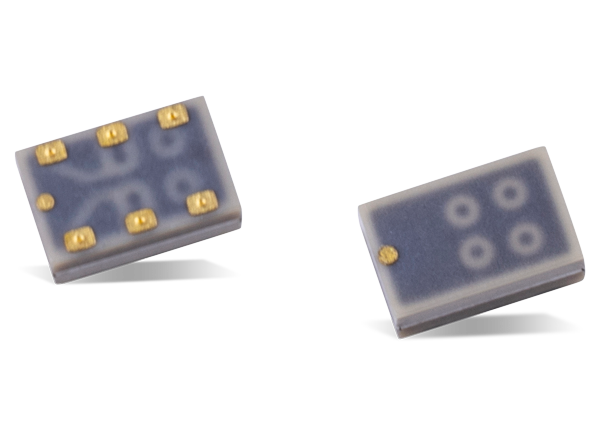

Anaren Xinger® Directional Couplers

Anaren Xinger® Directional Couplers are low-profile, sub-miniature couplers in easy-to-use surface-mount packages. These high-performance couplers are ideal for high-volume manufacturing as they can save space, reduce costs, and increase performance in applications. The modules are constructed from ceramic-filled PTFE composites, which possess excellent electrical and mechanical stability. The Xinger directional couplers feature a wide range of operating temperatures, a wide frequency range, low loss, and tight coupling. These couplers are suitable for power detection, signal injection, and other applications where low insertion loss signal monitoring is required.


  • Ultra-low insertion loss
  • Surface mount
  • 0805 package
  • Wide frequency range
  • RoHS compliant
  • Halogen-free
  • Wide operating temperature range


  • Power detection
  • Signal injection
  • Anywhere low insertion loss signal monitoring is required
Published: 2011-11-15 | Updated: 2022-12-22
