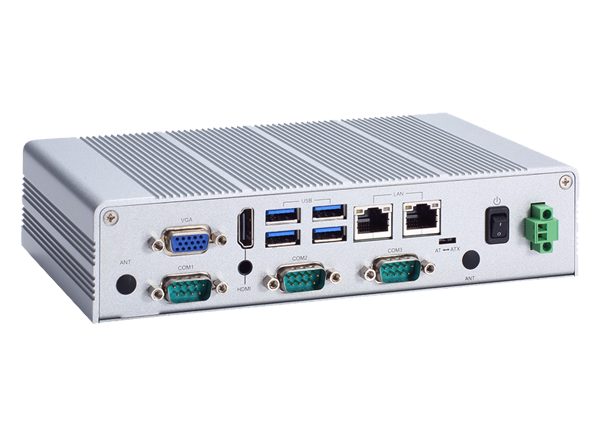

Axiomtek eBOX626-311-FL Fanless Embedded System

Axiomtek eBOX626-311-FL Fanless Embedded System is integrated with 1.8GHz Intel^® Atom^® x5-E3940 System-on-Chip (SoC) and 204-pin 8GB DDR3L-1866 SO-DIMM. This module supports 2GbE LAN, 3-COM (w/o 24V/120W adapter and power cord), 6-USB, one 2.5inches SATA drive bay, and an mSATA drive. The eBOX626-311-FL embedded system features an AMS.AXView intelligent remote monitoring software for Industrial Internet-of-Things (IIoT). The fanless embedded module is designed to operate reliably in industrial environments with an IP40-rated enclosure, extended -20°C to 60°C operating temperature range, and 3Grms vibration resistance. This module is ideally used in industrial controllers, intelligent robotic control, intelligent gateway systems, smart kiosks, visual inspection, and data visualization systems.

Specifications

Built with aluminum extrusion and heavy-duty steel
1.8GHz Intel^® Atom^® x5-E3940 onboard
204-pin DDR3L-1866 SO-DIMM for up to 8GB of memory
SoC integrated
Trusted Platform Module (TPM) 1.2
Supports 2GbE LAN, 3-COM, and 6-USB
AMS.AXView intelligent remote monitoring software for IIoT
System I/O outlet:
- 2x RS-232/422/485
- 1x RS-232
- 1x HDMI (lockable)
- 1x VGA
- 1x Audio (Mic-in/Line-out)
- 2x 10/100/1000 Mbps Ethernet (Intel^® i211-AT)
- 4x USB 3.0
- 2x USB 2.0
- 4x SMA-type antenna connector
- 1x Phoenix type VDC power input connector
- 1x AT/ATX switch
- 1x ATX power switch

Expansion interface:
- 2x Full-size PCI Express mini card slot (USB + PCIe signal)
- 1x SIM slot
Storage:
- 1x 2.5inches SATA HDD drive bay
- 1x mSATA
System indicator:
- 1x Green LED for system power-on
- 1x Yellow LED for HDD/SSD active
AC version power protection:
- Over Voltage Protection (OVP)
- Under Voltage Protection (UVP)
- Short Current Protection (SCP)
9V_DC to 36V_DC power supply
-20°C to 60°C operating temperature range
CE and FCC Class A certified
IP40 rated
200mm x 120mm x 46mm dimensions
