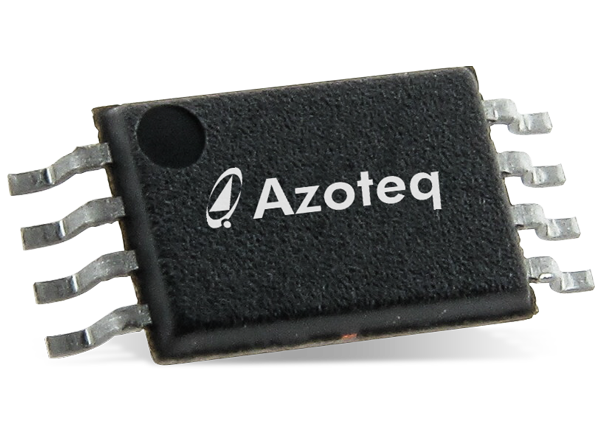

Azoteq IQS625 ProxFusion IC
Azoteq IQS625 ProxFusion IC is a multifunctional capacitance and Hall-effect sensor designed for applications where any or all of the technologies may be required. The Hall-effect sensors calculate the angle of a magnet rotating parallel with the sensor. The sensor is fully I2C compatible, and on-chip calculations enable the IC to stream the current angle/interval of the magnet without extra calculations. Applications include anemometer, thermostat, dial/selector knob, mouse wheel, measuring wheel, digital angle gauge, and speedometer for a bicycle.
Features
- Hall effect angle sensor
- On-chip Hall plates
- Absolute Wheel Interval Output
- Raw data can be used to calculate degrees on an external processor.
- Wide operational range
- No external components required
- Partial auto calibration
- Continuous auto-calibration, compensation for wear or small displacements of the sensor or magnet.
- Flexible gain control
- Automatic tuning implementation (ATI) – Performance enhancement (10 bit).
- Capacitive sensing
- Full auto-tuning with adjustable sensitivity
- 2pF to 200pF external capacitive load capability
- Multiple integrated UI
- Proximity / Touch
- Proximity wake-up
- Event mode
- Wake Hall sensing on proximity
- Interval wake-up
- Minimal external components
- Standard I2C interface
- Optional RDY indication for event mode operation
- Low power consumption
- 240uA (100Hz response, Hall),
- 55uA (100Hz response, capacitive),
- 65uA (20Hz response, Hall)
- 15uA (20Hz response, capacitive)
- 5uA (5Hz response, capacitive)
- 2.0V to 3.6V supply voltage
Applications
- Anemometer
- Dial or selector knob
- Mouse wheel
- Measuring wheel
- Digital angle gauge
- Speedometer for bicycle
Associated Eval Tool
Azoteq IQS624EV0x & IQS624/5EV0x Sensor Evaluation Tools
Designed for the evaluation of IQS624 and IQS625 ProxFusion® ICs.
