Bel Magnetic Solutions MagJack® 10G Integrated Connector Modules

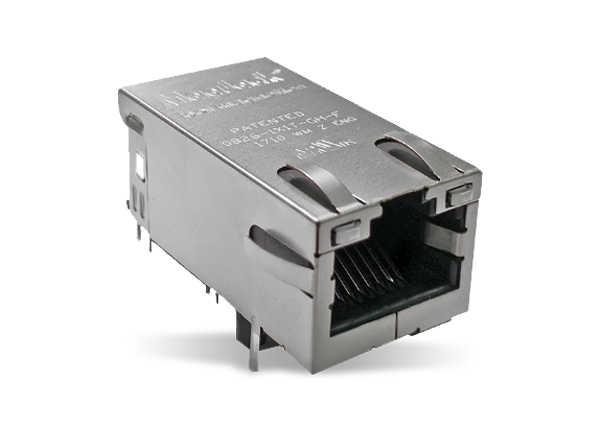

Bel Magnetic Solutions MagJack® 10G Integrated Connector Modules support 10GBT speeds in a small form factor. With a profile height less than 0.5" off the PCB, these high-speed connector modules can be used in low-profile and half-U height applications. The right angle, MagJack, 10G modules are offered in 1- and 2-port models with various LED color arrangements. Each ICM in this 10G series has achieved a UL 94V-0 flammability rating. Housing materials vary by model, including those made of polyamide (PA), polybutylene, terephthalate (PBT), thermoplastic (TP), and nylon. The Bel Magnetic lead-free, shielded, and RoHS compliant RJ45 connectors are ideal for motherboards, switches, routers, servers, workstations, and storage devices.
Features
- Supports 10GBT applications
- 30W, 60W, and 100W Power over Ethernet (PoE)
- -40° to +85° C temperature range
- Compact and low profile (under 0.50" height)
- RJ45 plug-tab up for ease of use
- EMI-spring tabs on the shield for enhanced EMI and ESD performance
- Shielded with multiple LED color and housing construction options
- Right angle, peg style mounting with through-hole termination style
- 100% hi-pot tested in production
- UL recognized
- RoHS 6-6 compliant, soldering at +260°C for 10 seconds
Applications
- 5G cellular equipment and base stations
- NBASE-T complaint products
- Higher bandwidth wireless access points
- High powered devices like Ethernet cameras
- High power sourcing applications like low-density 10GBASE-T Ethernet switches
- Management devices (100W versions only)
- LED lighting (100W versions only)
Related Products
Bel Magnetic Solutions MagJack® Integrated Connector Modules
RJ45 connectors with electrical components that meet standards for Media Dependent Interfaces.
Bel 1xN Port MagJack® Integrated Connector Modules
1- through 8-port low-density RJ45 connectors with integrated Ethernet magnetics inside the package.
Bel 2xN Port Integrated Connector Modules
2- through 18-port high-density RJ45 connectors with integrated Ethernet magnetics in the package.
Bel 5G Solutions
Bel 5G Solutions
Feature high speed, low latencies, and abundant bandwidth leading to the growth of transported data.
