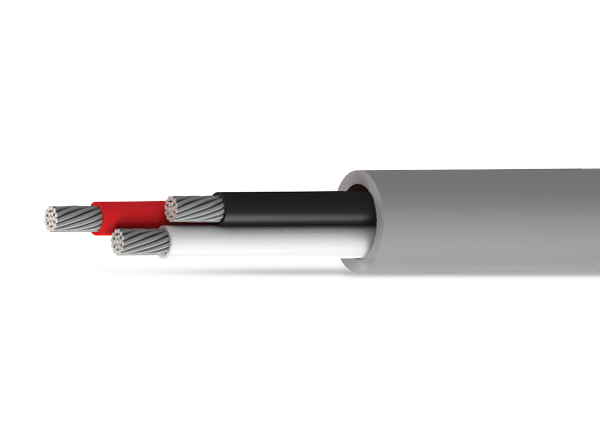

Belden Wire & Cable SpaceMaker™ Electronic Cables
Belden SpaceMaker™ Electronic Cables allow designers to connect machines and devices in space-constrained harsh industrial settings. SpaceMaker cables fit around tight corners and hard-to-reach spaces. This Belden 300V series offers up to 52% reduced cable area and up to 74% tighter bend radius compared to industry-standard electronic cables. Belden SpaceMaker Electronic Cables are suitable for use in NFPA 79 applications.
Features
- Up to 52% reduced cable area compared to industry-standard electronic cables
- Up to 74% tighter bend radius compared to industry-standard electronic cables
- Increased cable life with 1 million flex life cycles
- Increased flex life for use in moving environments
- 10-year warranty
- Suitable for use in NFPA 79 applications
Specifications
- Stranded tinned copper conductors
- Polypropylene (PP) insulation material
- 0.254mm insulation thickness
- Overall Beldfoil® Shield (100% coverage)
- Industrial-grade PVC jacket
- 300V voltage rating
- -20°C to +80°C temperature range
Applications
- Internal machine wiring
- Control cabinet wiring where space is constrained
- Product lines with machines that require precise movements
- Device-to-device wiring, connecting sensors, encoders, push-buttons, actuators, and more
- Harsh environments requiring enhanced protection from liquids, extreme temperatures, abrasion, chemical exposure, and heavy vibration
Flexibility and Space Savings
