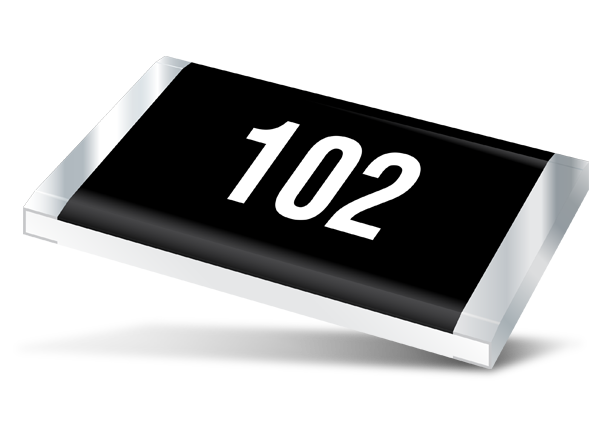

Bourns CRT-AS Sulfur-Resistant Thin Film Chip Resistors
Bourns CRT-AS Sulfur-Resistant Thin Film Precision Chip Resistors operate in harsh environments exposed to high levels of sulfur contamination. Applications include industrial, automation, power supply, and communication base station. Bourns CRT-AS surface mount resistors are offered in four footprints from 0402 (1005 Metric) up to 1206 (3015 Metric). These Bourns resistors offer ultra tight tolerances (0.1% to 1%) and are available in a wide impedance range.
Features
- Ultra-tight tolerance
- Wide resistance range
- Available in four package sizes
- Sulfur-resistant
- RoHS compliant
Applications
- Current sense
- Precision circuits
- Medical equipment
- Printers
- Automation equipment
- Navigation equipment
Specifications
- 0402, 0603, 0805, and 12206 case sizes
- -55°C to +155°C operating temperature range
- Derated to zero load at +155°C
- 25V to 200V maximum working voltage range
- 50V to 400V maximum overload voltage range
- 49.9Ω to 1MΩ resistance range
- ±0.05%, ±0.1%, ±0.25%, ±0.5%, and ±1% resistance tolerance options
- ±10ppm/°C to ±50ppm/°C temperature coefficient range
Published: 2016-04-19
| Updated: 2022-03-11
