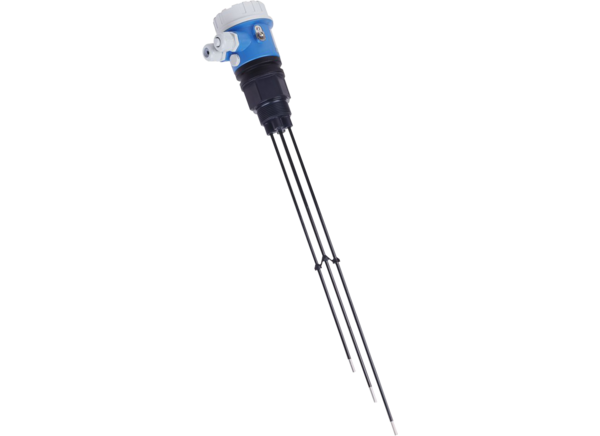

Endress+Hauser Liquipoint T FTW31 & FTW32 Point Level Switches
Endress+Hauser Liquipoint T FTW31 and FTW32 Point Level Switches provide simple and safe point level detection in conductive liquids with 10μS/cm minimum conductivity of medium. Depending on the number of measuring points (up to five rods or ropes), measuring tasks such as dry running protection, overfill protection, two-point control of pumps, or multiple-point detection can be performed. This cost-effective series easily adapts to different conductivities, thread process connections, and two-point control with additional MAX and MIN detection. No calibration is required, and no moving parts in the tank result in a long service life and reliable operation with no wear or blockages. These Endress+Hauser Liquipoint T switches offer an IP66 degree of protection and a sensor length of 0.1m to 4m for the FTW31 series and 0.25m to 15m for the FTW32 variant.
Features
- Cost-effective probe for conductive liquids
- Detect up to 5 point levels with 1 probe
- 2-point control and additional MAX and MIN detection
- Thread process connections
- Option between rod or rope version for optimum adaptation to applications
- Flexible instrumentation
- With built-in electronic insert, either transistor (PNP) or relay output
- For connection to separate transmitter power supply unit
- No adjustment required, standard setting for most common conductive liquids
- No moving parts in tank
- Long service life
- Reliable operation with no wear or blockages
- Easy adaptation to different conductivities
- No calibration required
- International explosion protection certificates, overfill prevention, and leakage detection certificate
- WHG approval
Specifications
- Sensor length
- FTW31: 0.1m to 4m (3.9" to 157")
- FTW32: 0.25m to 15m (10" to 590")
- 10μS/cm minimum conductivity of medium
- -1bar to 10bar (-14.5psi to 145psi) pressure range
- IP66 degree of protection

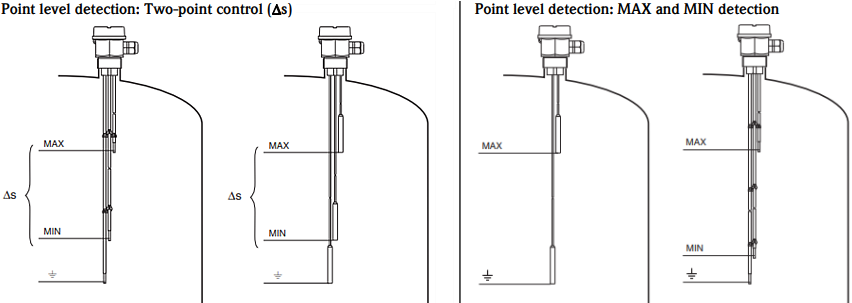

Application Examples
