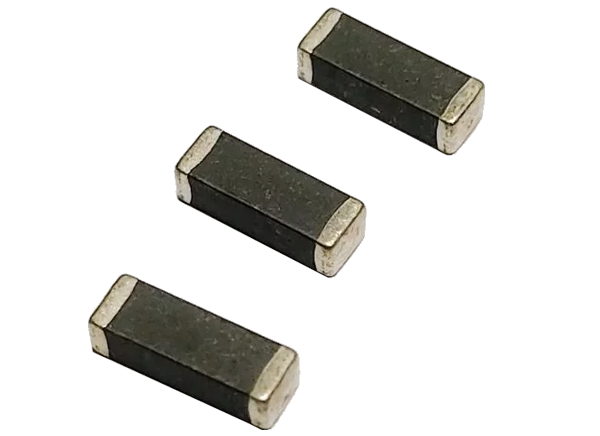

Laird Technologies CPI0603 Multilayer Ferrite Chip Power Inductors
Laird Technologies CPI0603 Multilayer Ferrite Chip Power Inductors are robust, small-sized structures that allow for higher mounting density. These inductors are built with low-loss magnetic material, which allows parts to perform at low DC resistance (DCR) with high reliability under DC loading. The CPI0603 inductors offer a wide range of inductance and 20% tolerance. These lead-free modules are RoHS and REACH compliant. Laird Technologies CPI0603 multilayer inductors are used in DC-DC converters and power modules, cellular phones, and are suitable for DVDs, DSC, PND, and PC.
Features
- Small size
- Monolithic construction provides high reliability
- Allows for higher mounting density
- Low DCR
- Wide range of inductance
- 20% tolerance
- 1MHz test frequency
- 100mV test voltage
- -40°C to +125°C operating temperature range
- RoHS and REACH compliant
- Lead free
Applications
- DC-DC converters and power modules
- Cellular phones
- Suitable for DVDs, DSC, PND, NB, and PCs
Videos

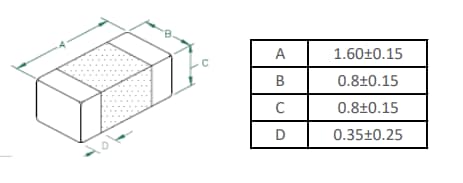

Dimensions

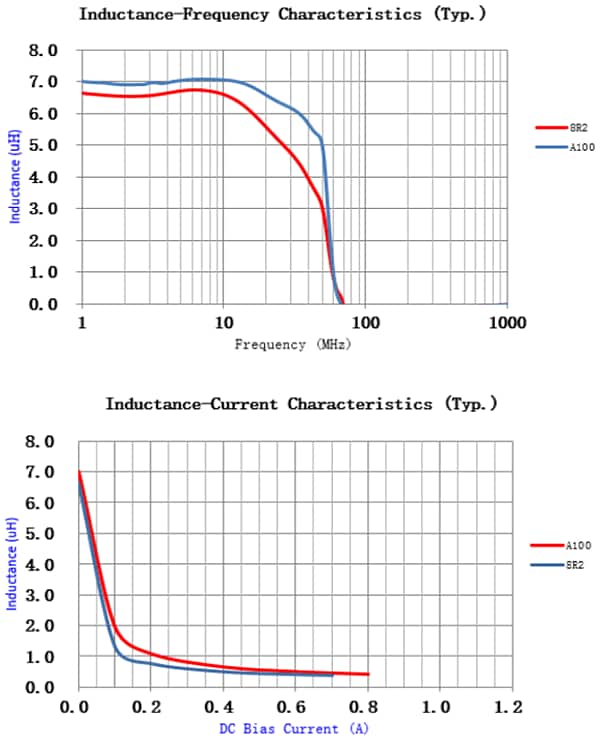

Performance Graphs
Published: 2022-09-20
| Updated: 2025-06-19
