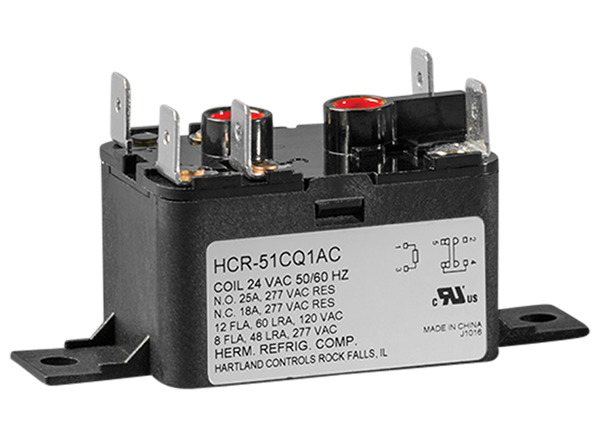

Hartland Controls / Littelfuse HCR-5 SPNO and SPDT General Purpose Switching Relays are available in SPNO, SPDT, and one normally open (NO) and one normally closed (NC) switching configurations. These relays feature a double-make contact configuration, 0.250″ QC power pole and coil terminations, Class B insulation system, and silver cadmium oxide contacts. The relays control circuits through a low-power signal. An electromagnetic current actuates the relay, creating a closed circuit within the device. These multi-positional mount relays are in-house tested and validated. Hartland Controls / Littelfuse HCR-5 SPNO and SPDT General Purpose Switching Relays are used in applications such as HVAC systems, standby power supplies, and telephone exchanges.
SPNO, SPDT, or 1 NO and 1 NC switching configurations
Class B insulation system
Silver cadmium oxide contacts
Double-make contact configuration
In-house tested and validated
Standby power supplies
12 FLA 60LRA: 18A resistive at 125VAC
8 FLA 48LRA: 18A resistive at 240VAC/277VAC
SPST-NO only: 25A resistive at 277VAC
0.250″ QC power pole and coil terminations
Mechanical life expectancy of 1M operations
UL 508 File No. E227250
-40°C to +65°C temperature range
