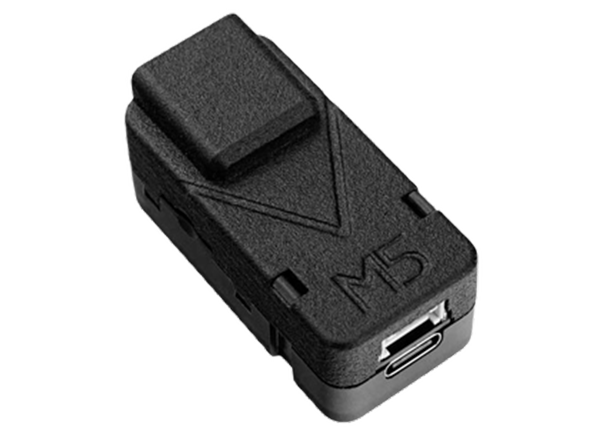

M5Stack UnitV2 USB without Camera
M5Stack UnitV2 USB without Camera is a high-efficiency Ai recognition module with a USB-A universal interface, allowing the connection to various UVC cameras. The UnitV2 USB provides a Sigmstar SSD202D (integrated dual-core Cortex-A7 1.2GHz processor) control core, 128MB-DDR3 memory, and 512MB NAND Flash.
The M5Stack UnitV2 USB without Camera offers a built-in Linux operating system, integrated with rich hardware and software resources and development tools for an efficient Ai development solution.
Features
- Sigmstar SSD202D
- Dual-core Cortex-A7 1.2GHz processor
- 128MB DDR3
- 512MB NAND Flash
- USB-A universal interface can be connected to various UVC cameras
- Wi-Fi 2.4GHz
- Development method:
- Equipped with 12 ways Ai image functions: QR code, face detection, line tracking, movement, shape matching, image streaming, classification, color tracking, face recognition, target tracking, shape detection, custom object detection
- Support online preview, UIFlow (used as serial port json format)
- Linux system(OpenCV, SSH, JupyterNotebook)
Applications
- Ai recognition function development
- Industrial visual recognition classification
- Machine vision learning
Kit Contents
- 1 x M5Stack UnitV2 USB
- 1 x 16g TF Card
- 1 x USB-C cable (50cm)
- 1 x bracket
- 1 x back clip

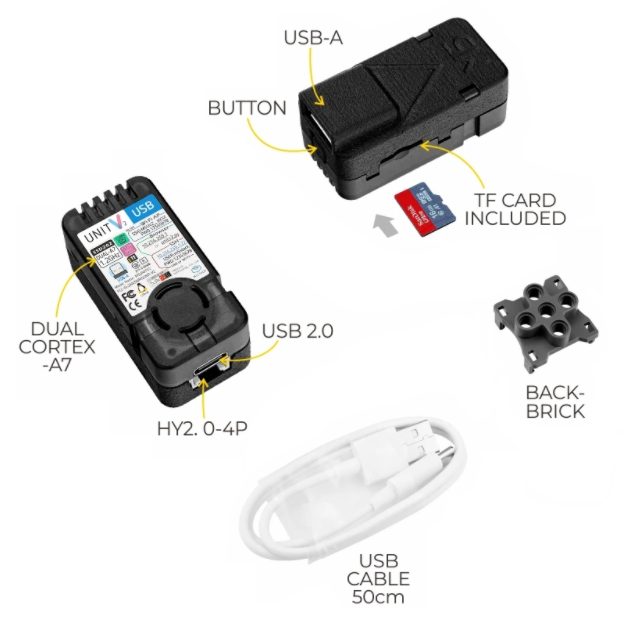

Layout

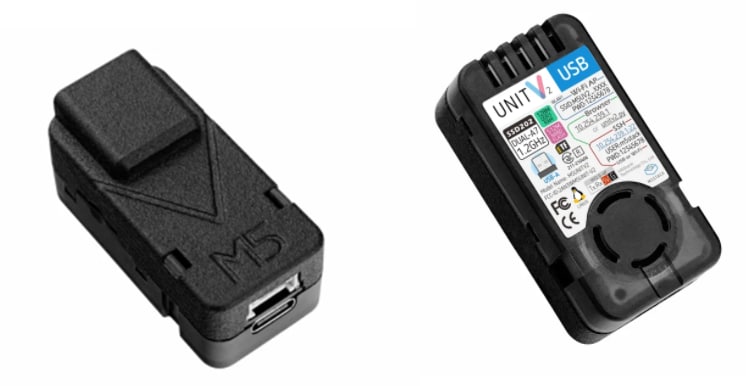

Overview
