Microchip Technology AVR® XMEGA™ Microcontroller Evaluation Kit
Microchip Technology AVR XMEGA®-A3BU Evaluation Kit is a demonstration and development platform for the Microchip Technology AVR® XMEGA™ Microcontroller. The Microchip AVR xMEGA®-A3BU Evaluation Kit features analog sensors, an analog filter, a Microchip AVR® ATxmega256A3BU microcontroller, FSTN LCD display with 128x32 pixels resolution, and a battery backup
Features
- FSTN LCD display with 128x32 pixels resolution
- Battery backup
- Analog sensors
- Ambient light sensor
- Temperature sensor
- Analog filter
- Digital I/O
- Three mechanical buttons
- Two user LEDs
- One power LED
- One status LED
- Four expansion headers
- Touch
- One Microchip AVR QTouch® button
- Memory
- Microchip AVR AT45DB642D DataFlash® serial flash
- Footprints for external memory
- Microchip AVR AT25DF series industry standard serial
Supported Devices
Microchip Technology AVR® XMEGA™ 8-Bit & 16-Bit Microcontrollers
Low power, high performance, and peripheral rich MCUs based on the AVR enhanced RISC architecture.

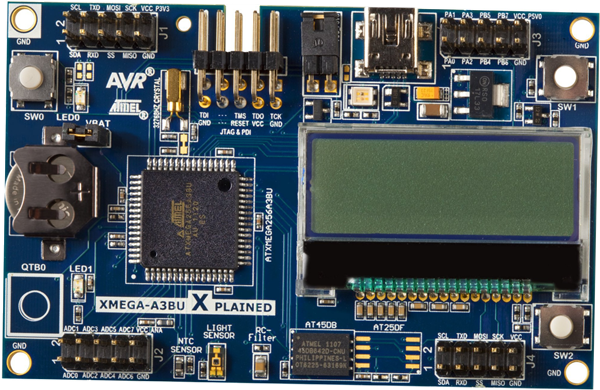

Board Layout
