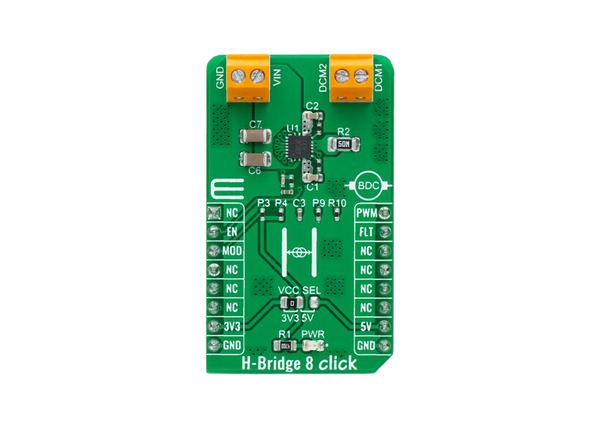

Mikroe H-Bridge 8 Click features the Monolithic Power Systems (MPS) MP6519 monolithic, step-down, current-source driver. The MP6519 is ideal for applications that require accurate and fast current-response control. The board achieves excellent load and line regulation over a wide input supply range up to 28V. The four integrated MOSFET H-bridge control provide a fast dynamic load response and an ultra-high efficiency solution. Complete protection features include load open, load-short protection, over-current protection (OCP), over-temperature protection (OTP), and input over-voltage protection (OVP).
MPS MP6519 monolithic current-source driver for applications that require accurate and fast current-response control
Low power consumption
Excellent load and line regulation over a wide input supply range
Fast dynamic load response
Controllable output polarity
Various protection features
GPIO, PWM interface
M (42.9mm x 25.4mm) click board size
3.3V or 5V, external input voltage
Applications that require accurate and fast current-response control
