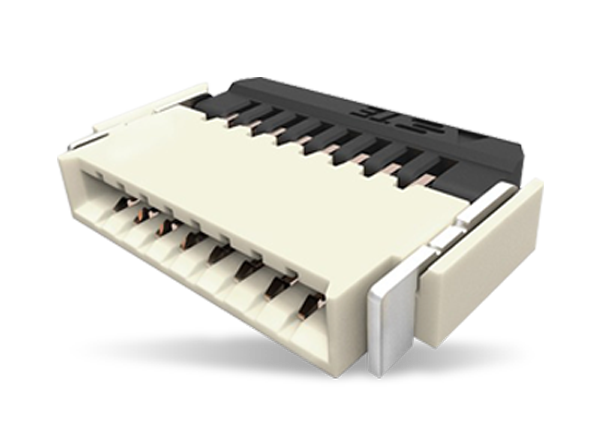

TE Connectivity Low-Profile FPC Connectors
TE Connectivity's (TE) Low-Profile FPC Connectors offer 0.25mm to 1.25mm centerline spacing and are ideal for applications where small centerline spacing makes larger wire-to-board interconnects impractical. TE's Low-Profile FPC series utilizes an actuator to secure the cable termination and is field terminatable (requiring no tooling). Applications include LC displays, game consoles, tablets, and wearables.
Features
- Uses FPC / FFC cable
- Available in ZIF and non-ZIF versions
- Top, bottom, and dual-contact versions
- Requires no application tooling
- Low-profile height
- Lightweight
- 0.25mm to 1.25mm pitch options
- 0.25mm pitch series accepts angled insertion of flexible printed circuit
- Space savings over other wire-to-board connectors
- Improved assembly efficiency
- Greater durability and tactile feel
- Design flexibility
Applications
- Flat flexible printed cable applications
- LC displays
- Game consoles
- Tablets
- Wearables
- Cameras
- Inkjet, laser, and 3D printers
- Personal computers
- Mobile and smartphones
- GPS devices
- Streaming devices/set-top boxes
- Disk drives
- Medical equipment
Contact Styles
Published: 2018-08-20
| Updated: 2023-01-13
