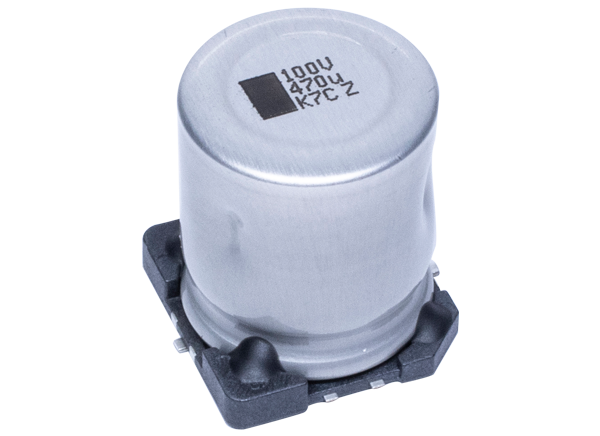

Vishay / BC Components 250 CRZ-V Aluminum Electrolytic Capacitors
Vishay / BC Components 250 CRZ-V Aluminum Electrolytic Capacitors are SMD (chip) high-vibration polarized aluminum electrolytic capacitors (AECs) that provide up to 10,000 hours of life at +105°C. These non-solid electrolytic, self-healing capacitors have low impedance, high ripple current, and charge and discharge proof with no peak current limitation. Vishay / BC Components 250 CRZ-V capacitors are AEC-Q200 qualified. Typical applications include SMD technology, industrial and professional applications, automotive, general industrial, telecom applications, and more.
Features
- Extended useful life of up to 10,000 hours at +105°C
- Polarized aluminum electrolytic capacitors, non-solid electrolyte, self-healing
- SMD version with base plate, lead-free reflow solderable
- Low impedance, high ripple current
- Charge and discharge proof, no peak current limitation
- High reliability
- Low ESR
- Parts for advanced high-temperature reflow soldering according to JEDEC J-STD-020
- Vibration-proof, 6-pin version up to 30g
- AEC-Q200 qualified
Applications
- SMD technology, for high-temperature reflow soldering
- Industrial and professional
- Automotive, general industrial, telecom
- Smoothing, filtering, buffering
Infographic
Published: 2017-01-10
| Updated: 2022-06-27
