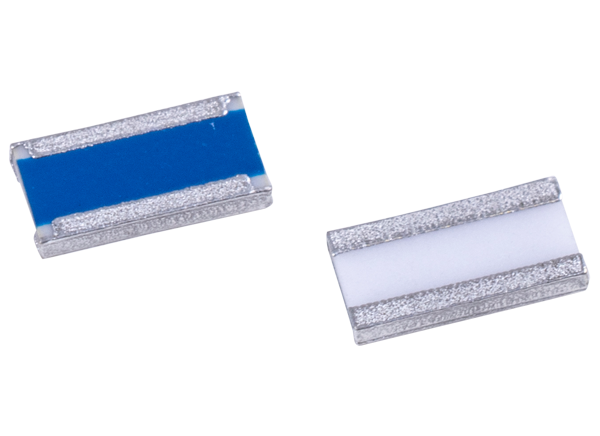

Vishay has released the sample kits (LCW series) for the MCW 0406-25 Thin Film Chip Resistors. The kit includes 80 resistance values with 20 resistors per value for a total of 1600. Vishay BC Components MCW AT Precision Wide Terminal Thin Film Chip Resistors are the perfect choice for most fields of modern professional power measurement electronics where reliability, stability, power dissipation, and robust design are of major concern. In addition to extremely high power ratings, the MCW AT Precision Wide Terminal Thin Film Chip Resistors is characterized by extraordinary temperature cycling robustness, verified through extensive testing. The permissible power rating is specified with 250 mW. MCW AT Precision Wide Terminal Thin Film Chip Resistors feature compact size, low TCR, tight tolerance, and are AEC-Q200 qualified. Typical applications include harsh/high-temperature applications, automotive, industrial appliances, and telecommunications electronics.
Rated dissipation P70 up to 250mW
Superior temperature cycling robustness
Operating temperature up to 155°C
AEC-Q200 qualified (pending)
Compliant to RoHS Directive 2002/95/EC
High power applications
Replacement for larger case sizes
Featured Sample Kits
Vishay / Beyschlag LCW Sample Kits
Include AEC-Q200 qualified thin-film resistors with a resistance range up to 100kΩ.
